Pouch Filling Machine For Liquid & Viscous Liquid

This pouch packing machine is suitable for filling and sealing liquid and viscous products such as juice, detergent, sauces, ketchup, adbule, liquid seasonings, paints, etc.
Description Review
Description

Introduction:

This pouch packing machine is suitable for filling and sealing liquid and viscous products such as juice, detergent, sauces, ketchup, adbule, liquid seasonings, paints, etc.

Features:

1) Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.

2) Frequency conversion adjusts the speed: this machine uses frequency conversion equipment and can be adjusted within the range according to the needs of reality in production.

3) Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoiding wasting packing materials and raw materials.

4) Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

5) Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.

6) The width of the bags could be adjusted by an electrical motor. Pressing the control button could adjust the width of clips, easily operate, and save time.

7) Use the plastic bearing; don't need to put on oil, less pollution.

8) Use no oil vacuum pump; avoid polluting the environment in the production.

9) The open zipper framework is special in the feature of the zipper bag, it can avoid distortion or destruction when opening the zipper.

10) The packing materials loss low, what this machine is used the reformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.

11) Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements and guarantee hygiene and security of the food.

12) With different feeders changed to pack solid, liquid, thick liquid, powder, and so on.

13) The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP, and so on a Preformed bag made by film and paper.

Workflow:

1. Giving bags

2. Date printing

3. Open bags 1st

4. Open bags 2nd (Integrity open the bottom of the bag)

5. Filling & Vibrate (Check 1: No bag or bag open error, no filling)

6. Sealing 1st (Or instead of Filling 2nd)

7. Sealing 2nd (Check 2: No bag, no sealing. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm)

8. Forming & Output Product.


Main Technical Data

Model

FP-200ZP

FP-250ZP

FP-320ZP

Working station

8

Application

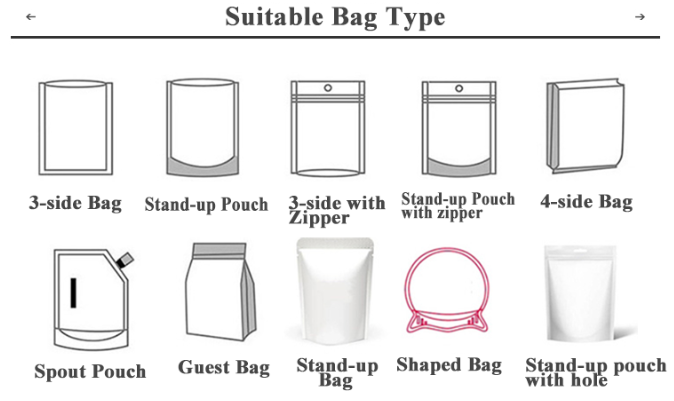

Pre-made stand pouch, zip pouch, Spout pouch, shaped bags, etc.

Applicable pouch size

W: 80-200mm

L: 100-360mm

W: 110-250mm

L:  100-350 mm

W:200-320mm

L: 200-450mm

Filling quantity

10-1500g

100 - 2500g

500-5000g

Packing speed

40-60 pouches/min

20-40 pouches/min

15-20 pouches/min

Voltage

380V 3phase 50HZ/60HZ

Power

6KW

6.5KW

6.5KW

Air pressure

Pressure 0.6-0.8Mpa,Air flow:0.6 m3/min

Weight

1500kg+200kg+300kg

Dimension

4400(L)*2230(W)*2558(H)mm

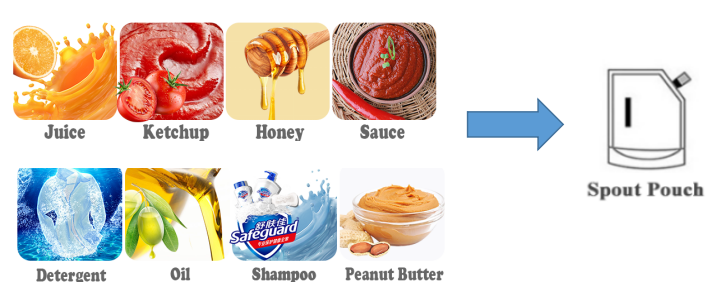

Application:
